JT Designs UK

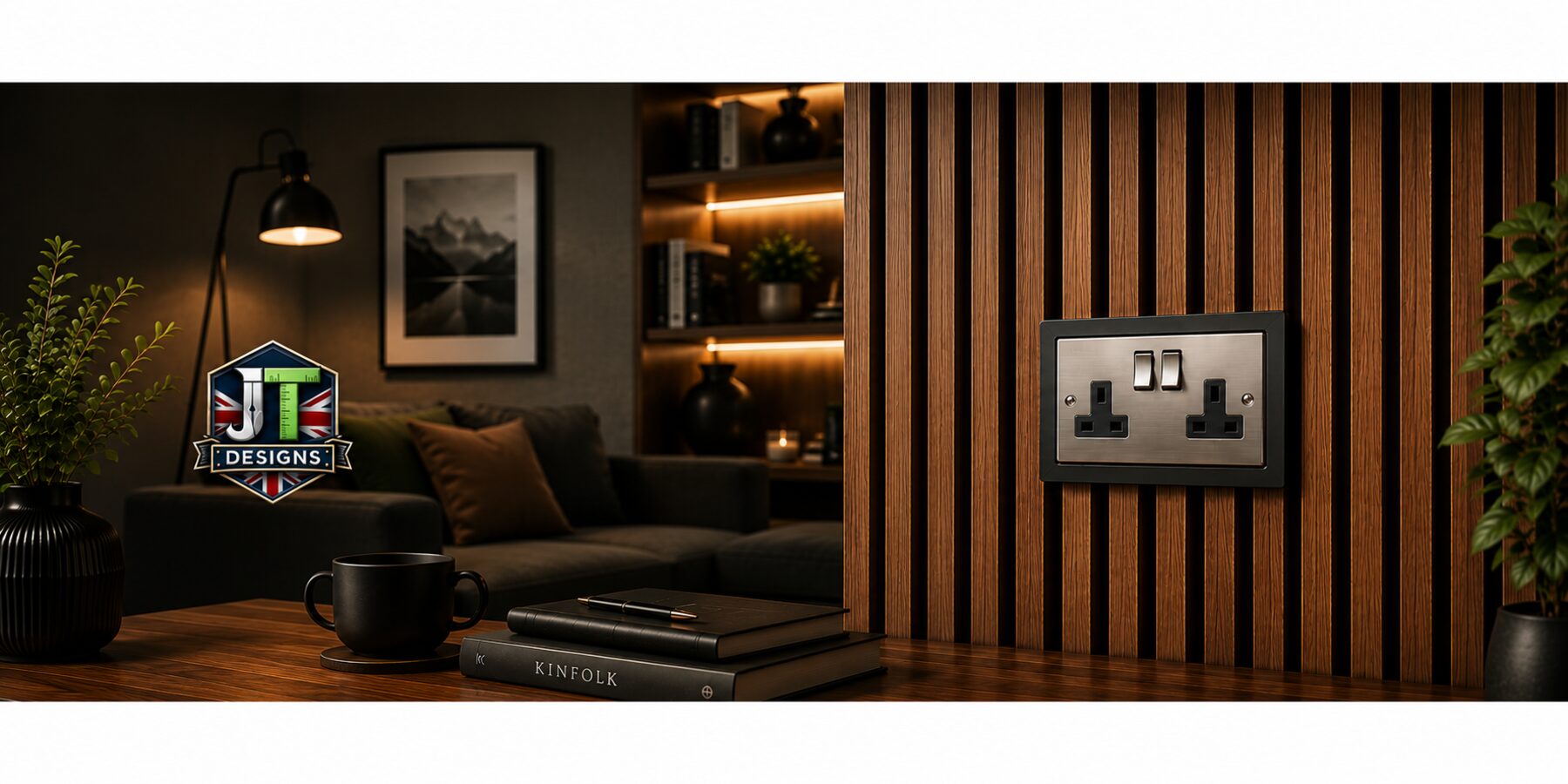

Socket surround installed on acoustic slat wall panel

For Acoustic Slat Wall Panels

A flush finish for the socket on your slat wall.

A precision surround that brings your plug socket level with 14mm and deeper acoustic panelling, and hides the rough cutout underneath. Matte black, UK made.

Buy on Amazon Check it fits

Flush Finish

Brings the socket level with the panel face, no proud faceplate.

Hides Rough Cuts

Conceals uneven cutouts around the socket for a tidy edge.

Fits 14mm+ Panels

Sized for standard acoustic slat panelling, 14mm deep and over.

Proudly Made in the UK

Designed and manufactured in Britain. UK Registered Design No. 6502365.

The Range

Single & double gang, both in matte black

Sized for standard UK gang faceplates, with a 14mm textured black border and a built-in socket spacer.

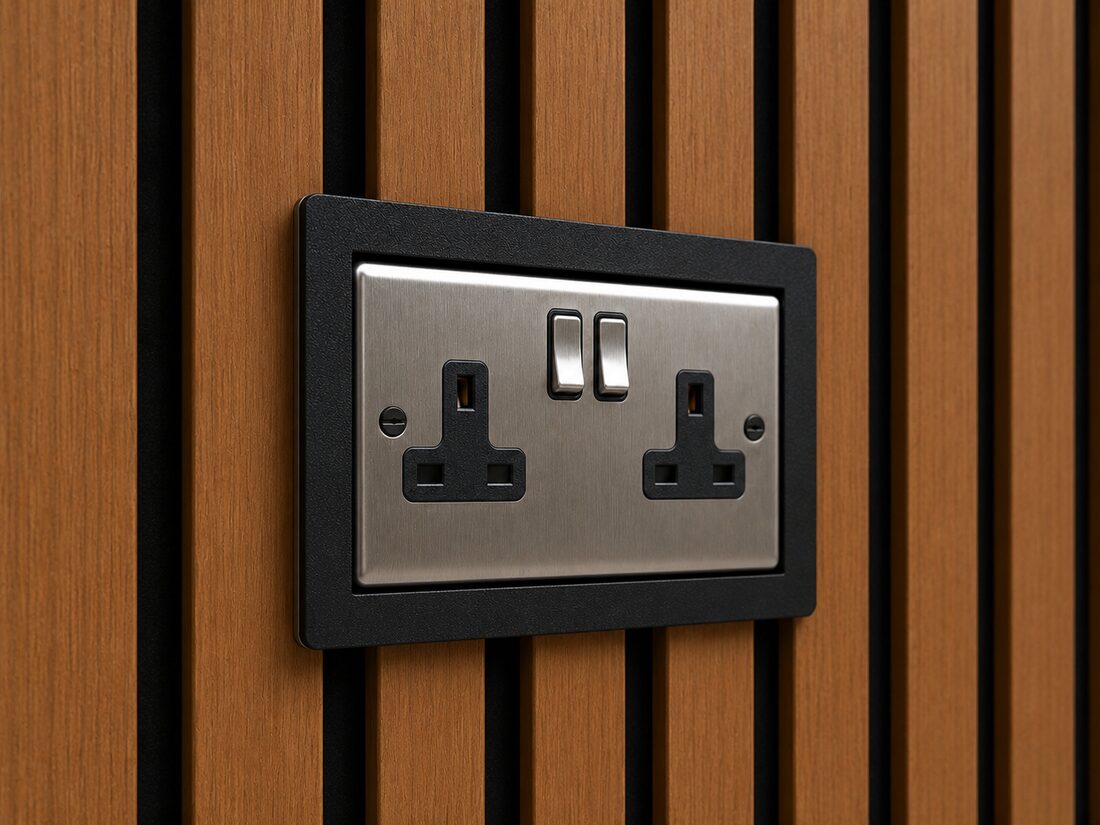

Double gang socket surround installed on slat wall

Double Gang Surround

Frames a UK double socket, with a 177mm × 117mm outer profile and a 147mm × 87mm inner opening. Includes 2 × 50mm black nickel fixing screws.

View on Amazon

Single Gang Surround

The same flush-fit design, sized to frame a single UK socket or switch with an 87mm × 87mm opening.

View on Amazon

Specification

Sized for standard UK gang faceplates

Designed to frame Double Gang faceplates neatly and securely with optimal clearance, at a fixed 8mm socket depth.

Outer dimensions incl. border 177 × 117 mm

Inner opening (socket size) 147 × 87 mm

Recess profile depth 8mm Socket Faceplate Depth

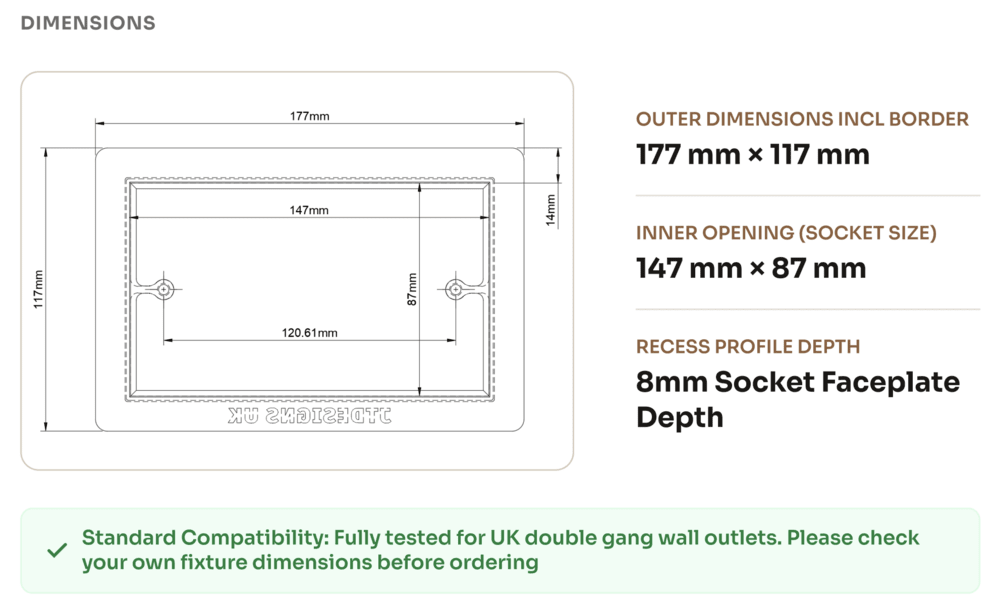

Dimension diagram: 177mm x 117mm outer, 147mm x 87mm inner opening

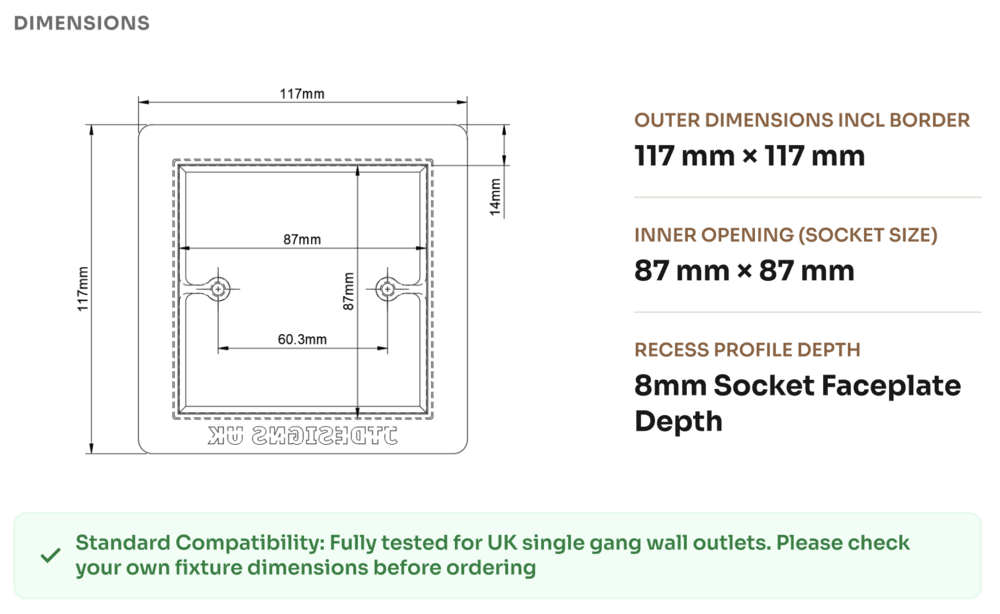

Dimension diagram: 117mm x 117mm outer, 87mm x 87mm inner opening

Before You Order

Check your panel opening

Measure the opening already cut into your panelling for the socket. You may need to enlarge the cutout slightly for the surround to seat properly.

Min. Width

154mm

Min. Height

94mm

Please check your panel opening dimensions before purchase to save time and hassle with unnecessary returns.

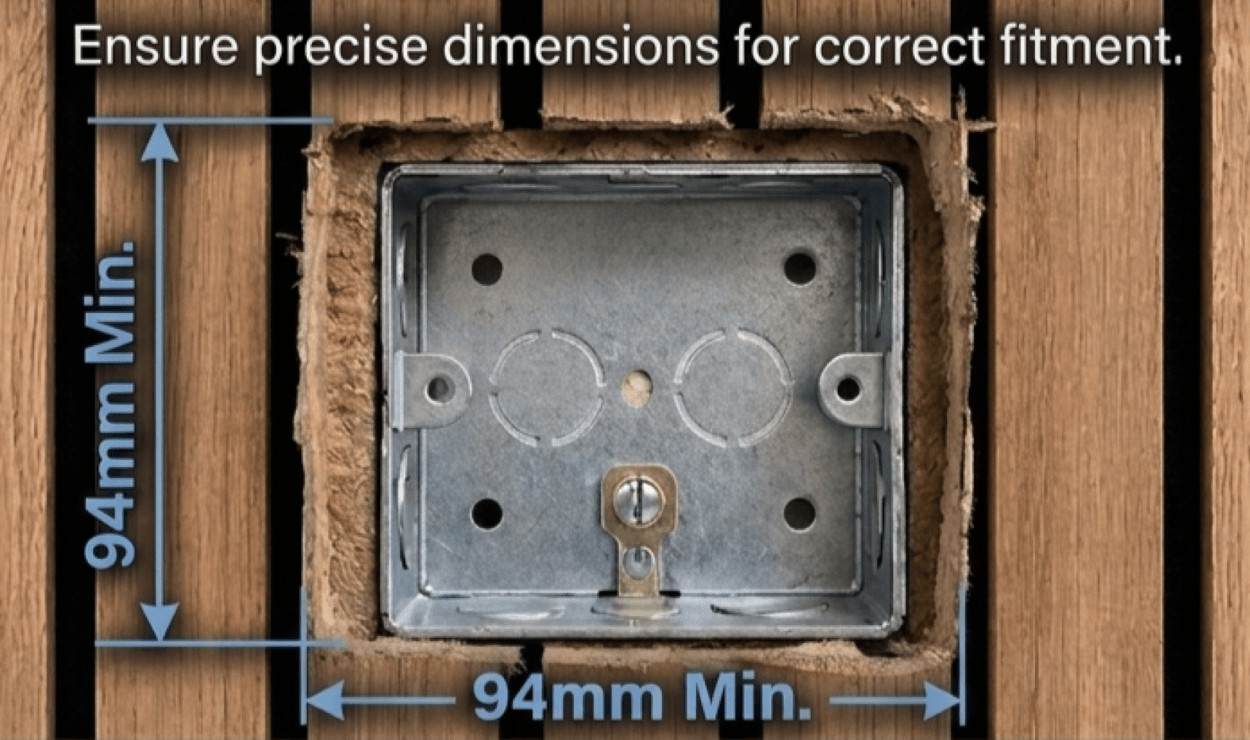

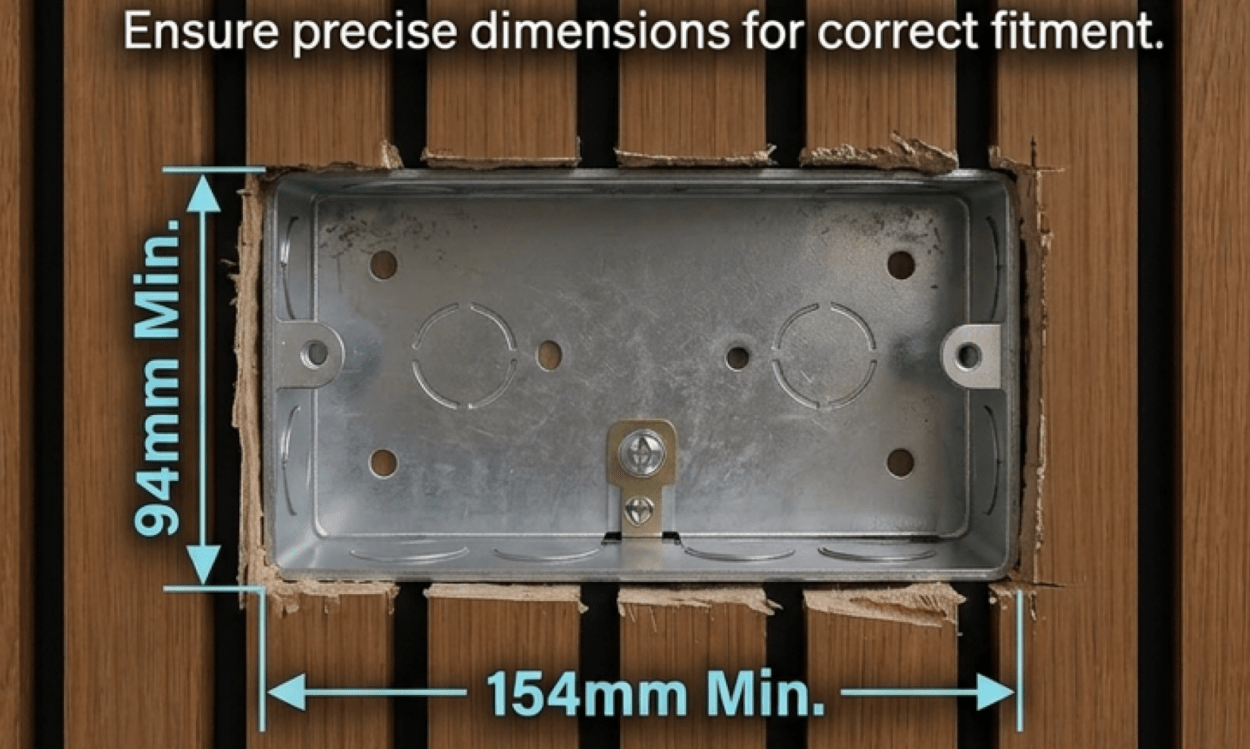

Back box cutout with minimum dimensions marked

Installation

Five minutes, no power tools

Isolate the electrical supply first, and consult a qualified electrician if you're unsure.

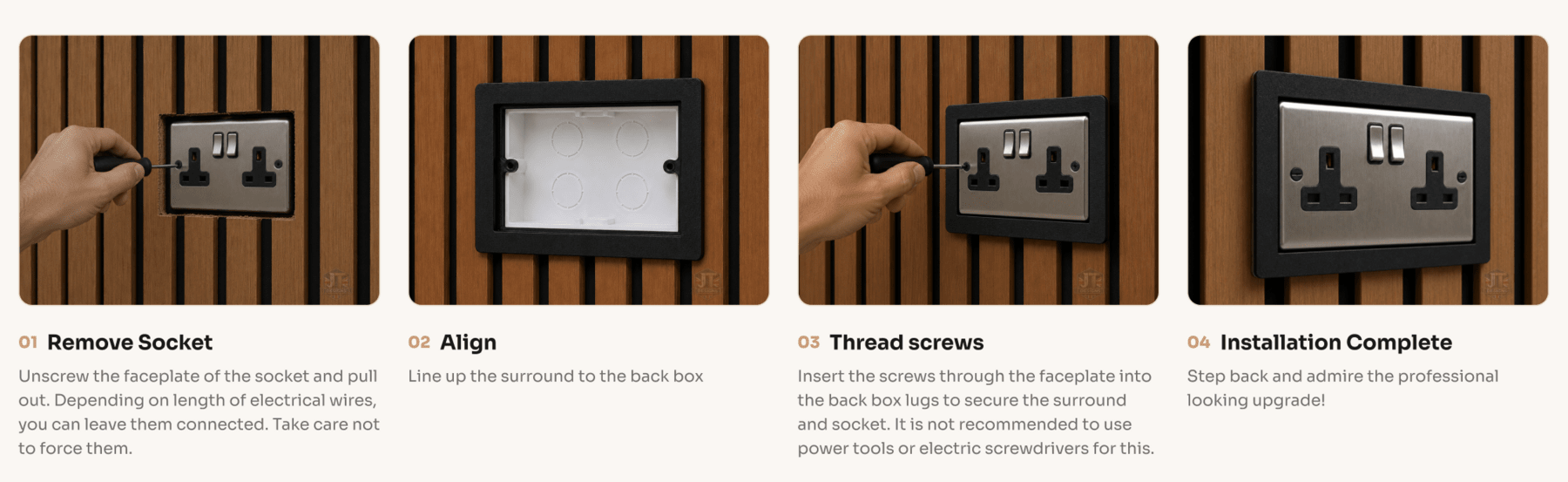

Installation steps: remove socket, align, thread screws, complete

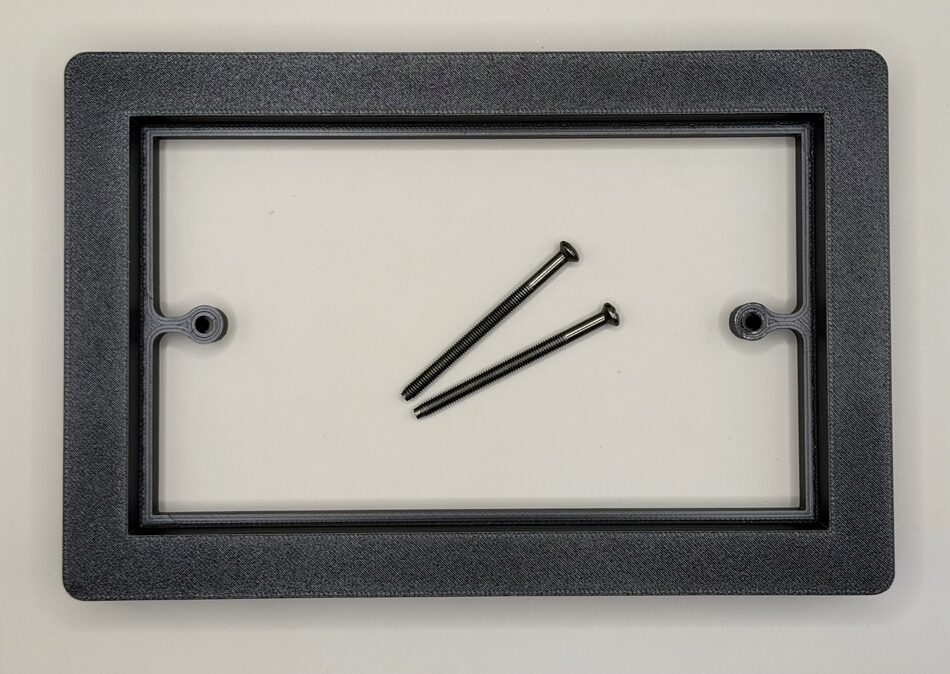

In The Box

What's included

1 × Socket Surround Trim

2 × 50mm M3.5 Black Nickel Electrical Screws

5-Minute Installation Longer Screws Included

★★★★★

4.8 out of 5

Based on customer ratings on Amazon

Read reviews on Amazon →

FAQ

Common questions

Support

Need help?

Ordering, delivery and returns are handled through Amazon. For fitting advice or product questions, reach us directly.

Email us

We usually reply within one working day.

support@jtdesigns.uk

Available now on Amazon

Single and double gang, matte black. Sold and fulfilled through Amazon.

Double Gang — Amazon Single Gang — Amazon
